ONLINE CONTINUOUS EMISSION MONITORING ANALYZER (OCEMS)

Name: ONLINE CONTINUOUS EMISSION MONITORING ANALYZER (OCEMS)
Brand: Neer Instruments
Price: 849994.0 INR
Availability: InStock

Price 849994.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ONLINE CONTINUOUS EMISSION MONITORING ANALYZER (OCEMS) Specification

Shape
Rectangular (Rack-Mount Design)

Features
Monitors up to 7 gases simultaneously Dual Sensor UV-IR Technology Ultra-Low Drift Measurement Built-in Data Logging Easy Installation and Maintenance Remote Sampling up to 40 meters RS-232 / RS-485 Modbus Communication

Power Supply
200 240 V AC, 50 60 Hz

Control Type
Automatic / Manual Calibration Options

Display Type
7-inch Touchscreen LCD Display

Temperature Resistance
20 C to +250 C (Operating Ambient)

Accuracy
0.5% (Typical for Measured Gases) %

Usage
Continuous Measurement of Flue Gas Emissions (CO, CO , NOx, SO , O , etc.)

Dimension (L*W*H)
570 600 370 Millimeter (mm)

Size
Standard 19 Rack Mount

Product Type
Gas Analyzer / Emission Monitoring System

Weight
Approx. 35 40 kg Kilograms (kg)

Equipment Type
Online Gas Analyzer

Color
Silver / Grey

Equipment Materials
Aluminum Enclosure / Optional Explosion-Proof Housing

Power
400 Volt (v)

Voltage
200 240 V AC, 50 60 Hz Volt (v)

Material
Industrial Grade Aluminum Alloy

Application

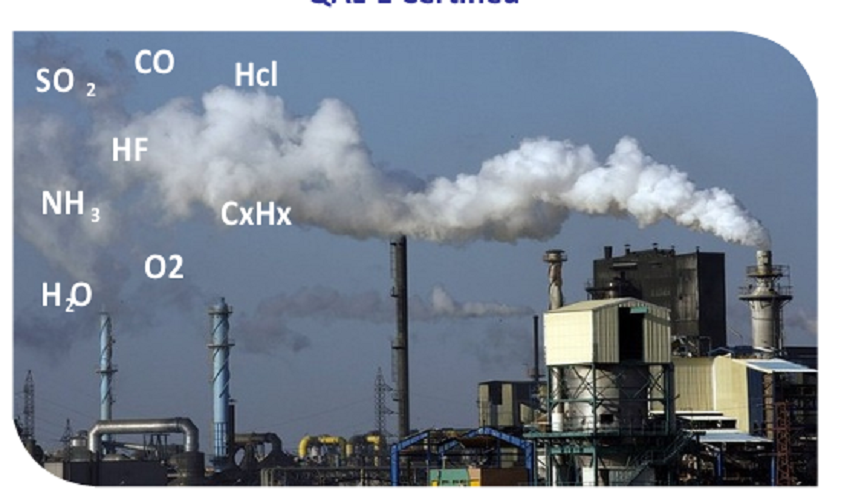

Power Plants, Boilers, Incinerators, Refineries, Cement & Chemical Industries

Warranty
1 Year

ONLINE CONTINUOUS EMISSION MONITORING ANALYZER (OCEMS) Trade Information

Minimum Order Quantity
1 Unit

FOB Port
SURAT

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
4 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Export-grade wooden crate with shockproof and moisture-protected packing

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO 9001:2015, CE Certified

About ONLINE CONTINUOUS EMISSION MONITORING ANALYZER (OCEMS)

The MS-209 UV-IR Gas Analyzer continuously monitors gas concentrations ranging from 100% V/V down to PPM levels.

It features dual-wavelength sensors, remote sampling, a 7-inch touchscreen display, relay and 420 mA outputs, and minimal maintenance requirements.

A specialized gas conditioning system cleans and dries samples for superior accuracy.

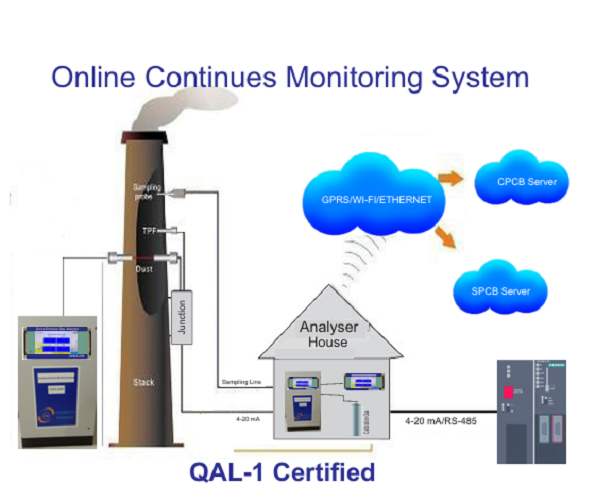

An internal pump draws the gas sample through a dust filter from intakes located up to 40 meters away.

The systems robust aluminum enclosure ensures durability in industrial environments.

For hazardous areas, the sensor can be mounted remotely and connected safely via a zener barrier to the electronics unit in a safe zone. An explosion-proof enclosure is also available for complete system protection.

Advanced Gas Monitoring Technology

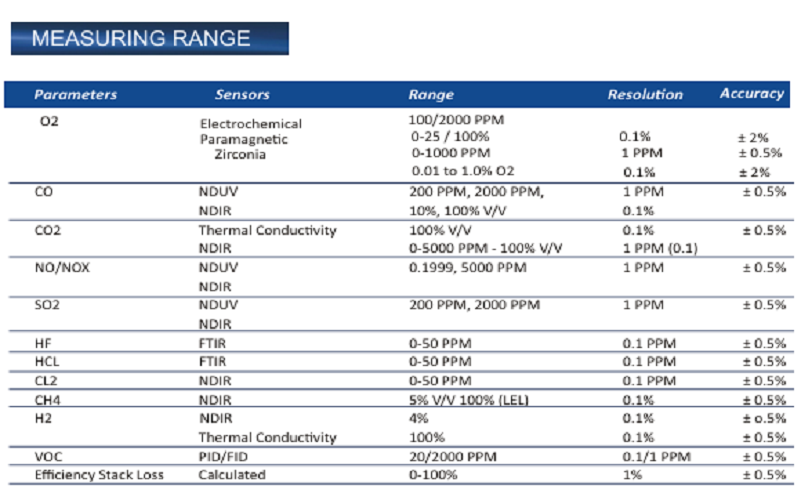

OCEMS uses dual sensor UV-IR technology that enables precise, simultaneous measurement of up to seven different gases, including CO, CO, NOx, SO, and O. With ultra-low drift measurement capability and a typical accuracy of 0.5%, users benefit from highly reliable emission data ideal for regulatory compliance and process optimization.

Flexible Installation and Operation

The analyzer features a standard 19" rack-mount design made from industrial-grade aluminum alloy, making it both durable and easy to integrate into existing systems. Installation and maintenance are straightforward, and remote sampling is possible up to 40 meters, offering flexibility for various plant layouts and configurations.

User-Friendly Interface and Data Management

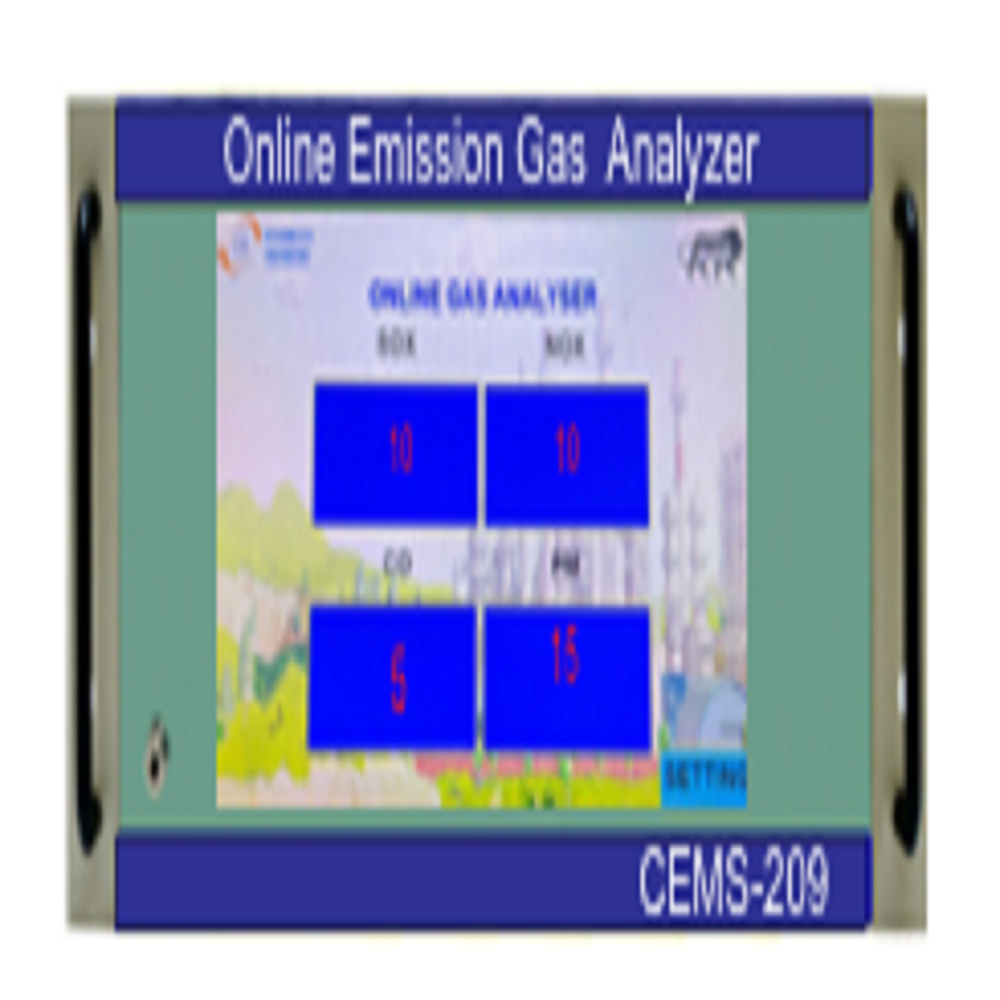

A 7-inch touchscreen LCD display provides intuitive operation, while built-in data logging ensures continuous recordkeeping and traceability. Communication through RS-232/RS-485 Modbus allows seamless integration with plant management systems, ensuring efficient monitoring and control in demanding industrial settings.

FAQs of ONLINE CONTINUOUS EMISSION MONITORING ANALYZER (OCEMS):

Q: How does the OCEMS monitor multiple gases simultaneously?

A: The OCEMS utilizes dual sensor UV-IR technology to detect and measure up to seven different gases at once, delivering precise and real-time readings for pollutants such as CO, CO, NOx, SO, and O.

Q: What industries is the OCEMS suitable for?

A: This analyzer is ideally suited for environments like power plants, boilers, incinerators, refineries, and cement or chemical industries, where continuous emission monitoring is essential for regulatory compliance and operational safety.

Q: When should the OCEMS be calibrated, and how is it performed?

A: Calibration of OCEMS can be performed automatically or manually, depending on user preference and regulatory requirements. Routine calibration ensures measurement accuracy and reliability during long-term operation.

Q: Where can remote sampling be implemented with OCEMS?

A: The system supports remote flue gas sampling up to 40 meters away from the analyzer, which is especially useful in large plant setups where direct access may be limited.

Q: What is the benefit of built-in data logging?

A: Built-in data logging provides continuous, secure storage of emission readings. This feature supports regulatory compliance, facilitates data analysis, and simplifies maintenance reporting processes.

Q: How does the OCEMS communicate with other systems?

A: It integrates seamlessly via RS-232 and RS-485 Modbus interfaces, enabling reliable data exchange and remote control within existing plant monitoring infrastructures.
