Online TOC Analyzer

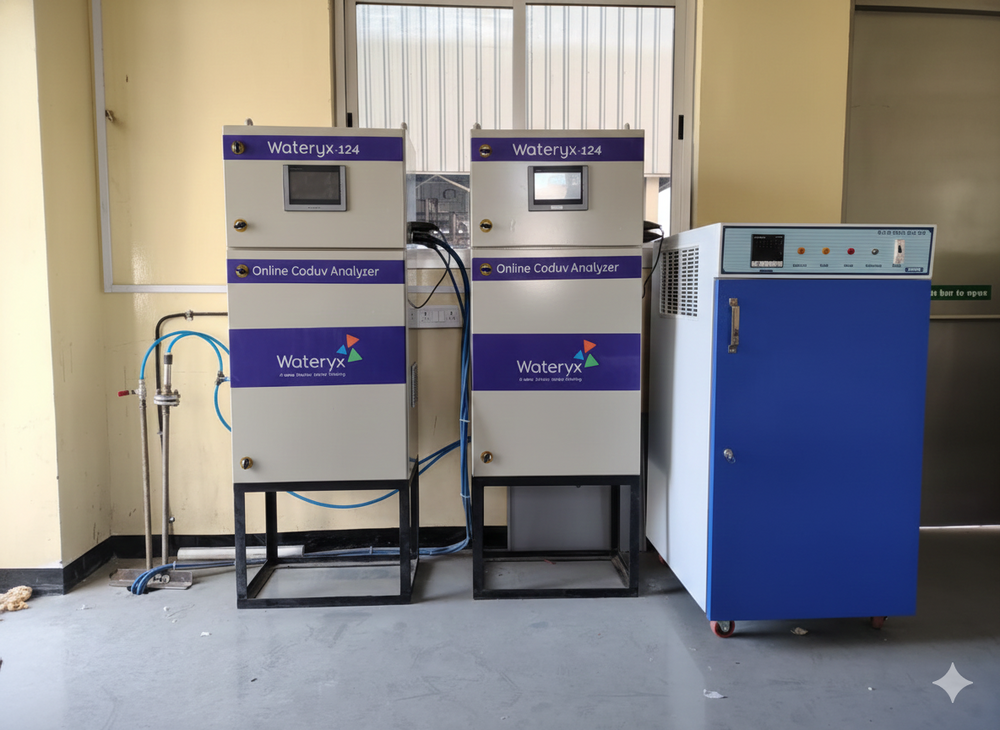

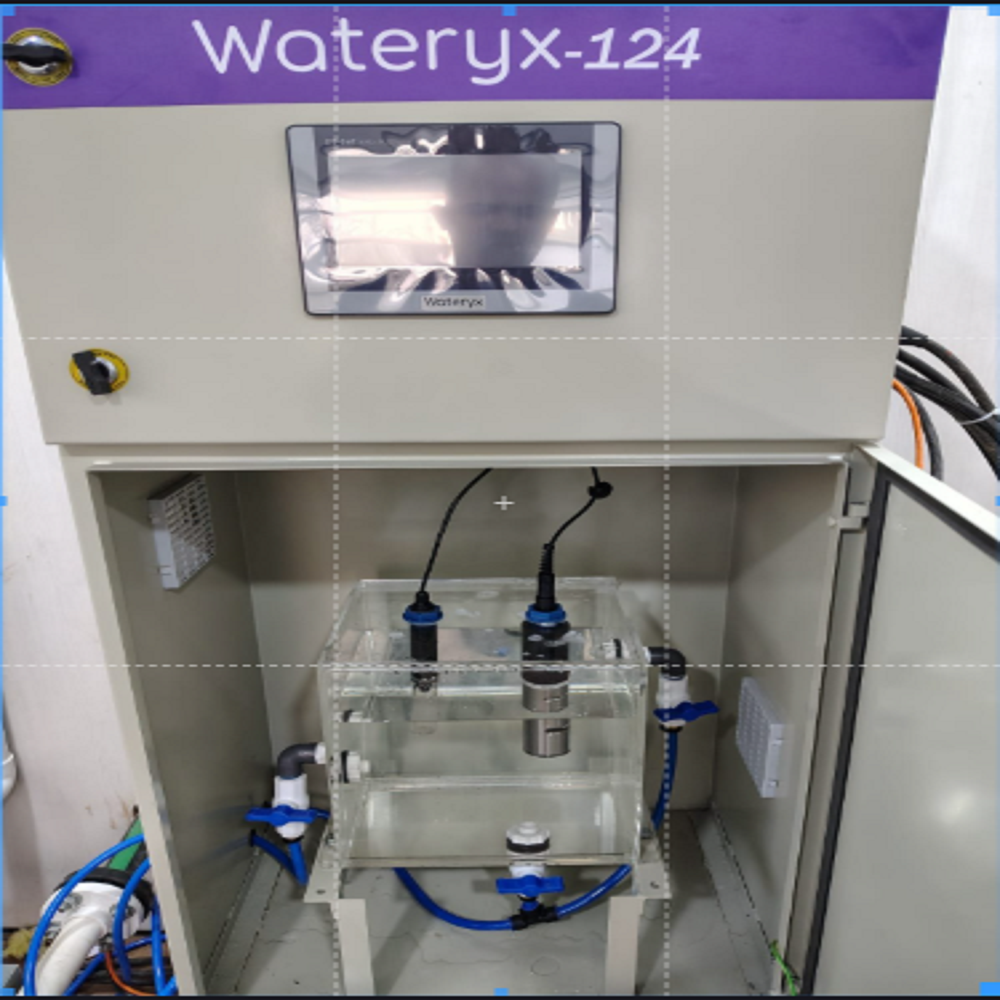

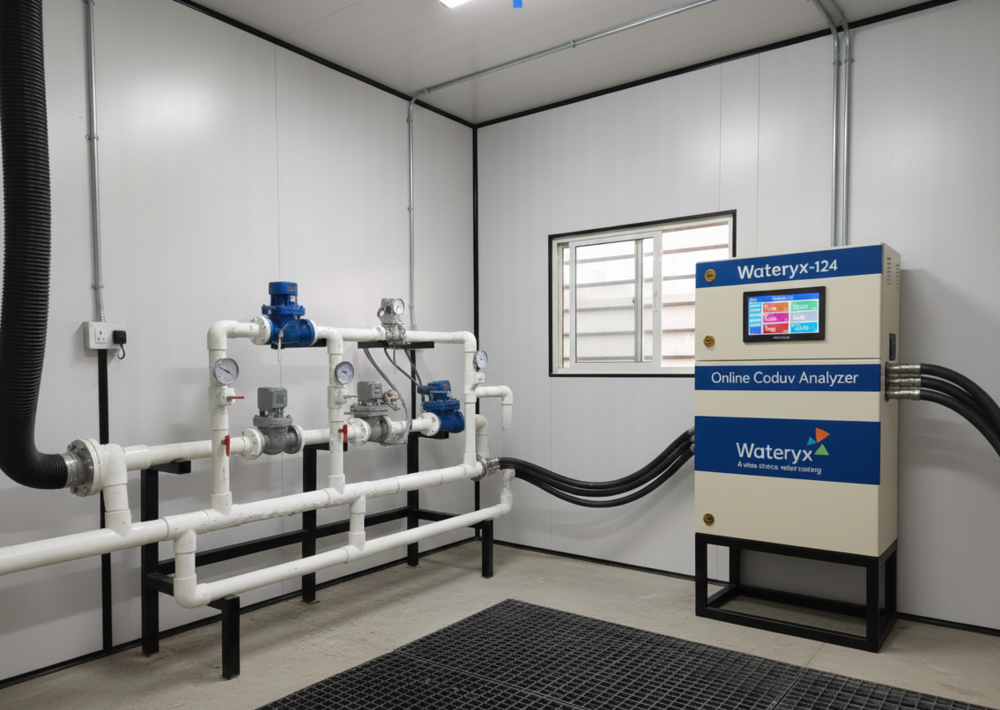

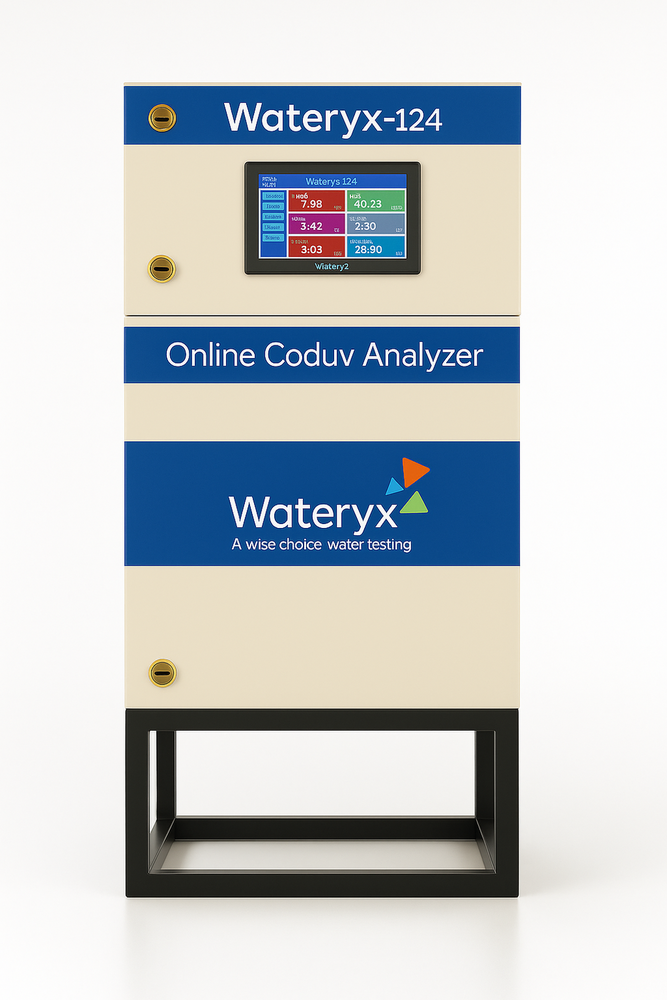

ONLINE TOC,COD,BOD,TSS ANALYZER

Price 749996.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Equipment Type
Online COD, BOD, TSS, TDS, PH analyzer

Accuracy
100 %

Application
Laboratory, Wastewater Treatment, Industrial Process, Environmental Monitoring

Automation Grade
Online Continuous Monitoring

Classification
COD / BOD / Turbidity / Temperature / Multi-parameter Analyzer

Color
Controller: Grey/Black, Sensor: Metallic / Stainless Steel

Control Mode
Digital / Automatic

Dimension (L*W*H)
Controller: 204 150 33.9 mm (8.03 5.91 1.34 in), Sensor: 214 50 mm diameter (8.43 1.97 in) Millimeter (mm)

Display Type
7 LCD touchscreen (800 480)

Features
Maintenance-free, automatic cleaning system, multi-parameter, remote monitoring, IP68 waterproof sensor

Hardness
Not applicable

Humidity
095% RH (non-condensing, typical electronics spec)

Interface Type
RS485 Modbus, 2x 420 mA analog outputs, relay contacts, optional TCP/IP

Material
Controller: ABS, Sensor: POM + 316L Stainless Steel + Sapphire window

Max Height
Controller: 33.9 mm, Sensor: 214 mm

Mounting Type
Free Stand / Wall Mount optional

Number of Specimens
Continuous online measurement

Operate Method
Semi Auto

Operating Voltage
12V DC / 24V DC Volt (V)

Port Size
Not applicable

Power
12V DC 5%, <50 mA (excluding cleaning) Volt (v)

Power Supply
Electric

Product Type
Online Water Quality Analyzer

Resolution
COD 0.01 mg/L, BOD 0.1 mg/L, Turbidity 0.1 NTU, Temperature 0.1C

Response Time
60 seconds (real-time measurement) Seconds

Temperature
Operating: -1060C (Controller), 545C (Sensor) Celsius (oC)

Test Range
COD: 0500 / 03000 mg/L (depending on model), BOD: 0250 / 01500 mg/L

Test Speed
Not applicable

Test Stroke
Not applicable

Usage
Measuring Testing & Measurement, Online Water Quality MonitoringTools

Voltage
12V DC (Sensor), 24V DC (Controller) Volt (v)

The Wateryx-124 Online COD Analyzer is a cutting-edge solution for real-time monitoring of chemical oxygen demand (COD) in water. Utilizing advanced dual-beam UV-Vis spectroscopy at 254 nm and 365 nm, it delivers highly accurate, stable, and maintenance-free measurements. Equipped with an automatic cleaning system, intelligent calibration, multi-parameter analysis, and remote monitoring options, it is ideal for municipal wastewater, industrial effluent, surface water, and environmental monitoring. The system reduces operational costs by eliminating chemical reagents while providing actionable real-time data.

Know more

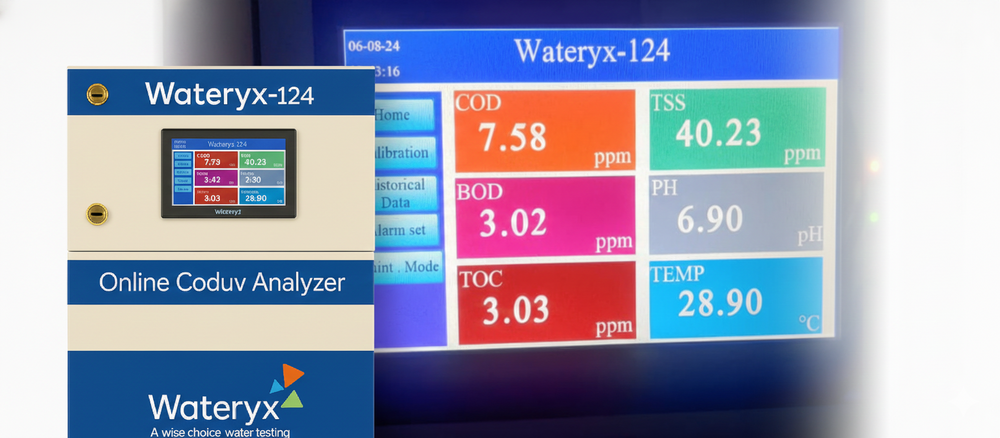

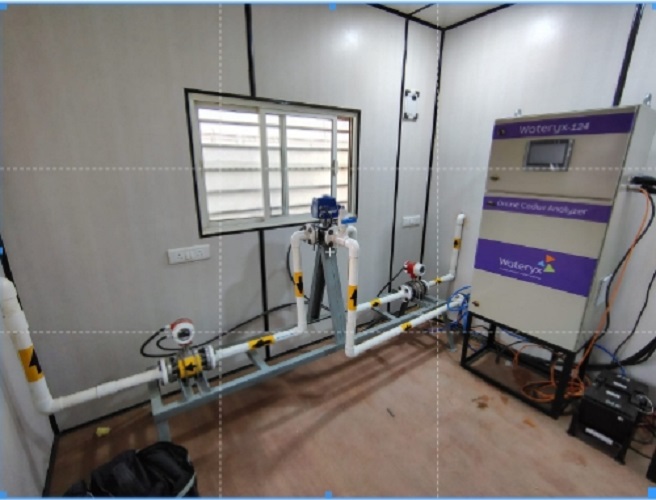

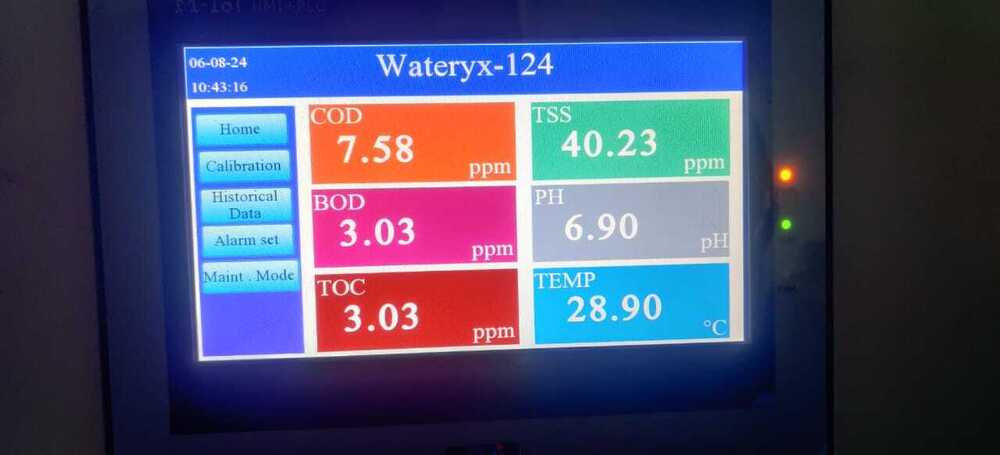

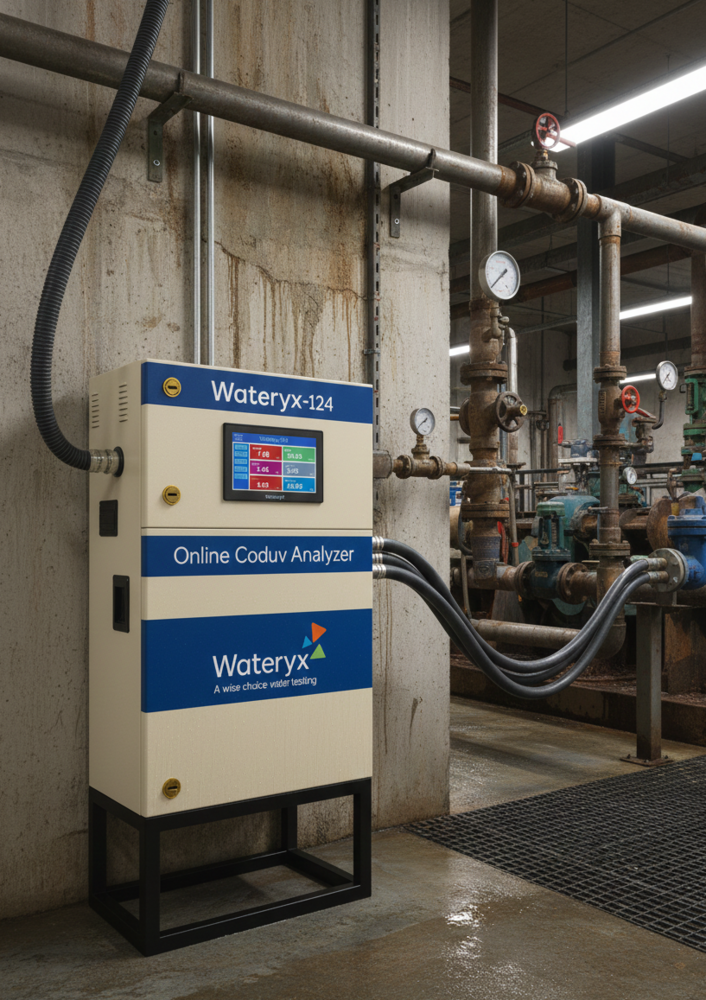

ONLINE CODUV ANALYZER

Price 749995.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Equipment Type
Online COD, BOD, TSS, TDS, PH analyzer

Accuracy
100 %

Application
Laboratory / Wastewater / Industrial Monitoring

Automation Grade
Online Continuous Monitoring

Classification
COD / BOD / Turbidity / Temperature / Multi-parameter Analyzer

Color
Controller: Grey/Black, Sensor: Metallic / Stainless Steel

Control Mode
Digital / Automatic

Dimension (L*W*H)
Controller: 204 150 33.9 mm (8.03 5.91 1.34 in), Sensor: 214 50 mm diameter (8.43 1.97 in) Millimeter (mm)

Display Type
7 LCD touchscreen (800 480)

Features
Maintenance-free, automatic cleaning system, multi-parameter, remote monitoring, IP68 waterproof sensor

Humidity
095% RH (non-condensing, typical electronics spec)

Interface Type
RS485 Modbus, 2x 420 mA analog outputs, relay contacts, optional TCP/IP

Material
Controller: ABS, Sensor: POM + 316L Stainless Steel + Sapphire window

Max Height
Controller: 33.9 mm, Sensor: 214 mm

Measuring Range
COD 0500 / 03000 mg/L, BOD 0250 / 01500 mg/L, Turbidity 0500 / 03000 NTU, Temperature 050C Celsius (oC)

Mounting Type
Free Stand / Wall Mount optional

Number of Specimens
Continuous online measurement

Operate Method
Semi Auto

Operating Voltage
12V DC / 24V DC Volt (V)

Port Size
Not applicable

Power
12V DC 5%, <50 mA (excluding cleaning) Volt (v)

Power Supply
Electric

Product Type
Online Water Quality Analyzer

Resolution
COD 0.01 mg/L, BOD 0.1 mg/L, Turbidity 0.1 NTU, Temperature 0.1C

Response Time
60 seconds (real-time measurement) Seconds

Temperature
Operating: -1060C (Controller), 545C (Sensor) Celsius (oC)

Test Range
COD: 0500 / 03000 mg/L (depending on model), BOD: 0250 / 01500 mg/L

Test Stroke
Not applicable

Usage
MeasuMeasuring Testing & Measurement, Online Water Quality MonitoringToolsring Tools

Voltage
12V DC (Sensor), 24V DC (Controller) Volt (v)

The UV254 COD Online Analyzer is a reliable and efficient solution for real-time monitoring of organic pollutants in water. It works on advanced ultraviolet absorption technology, using 254 nm UV light to detect organics and 365 nm reference light to automatically compensate for turbidity and optical path variations. This ensures highly accurate and stable results even in challenging water conditions. Designed for continuous operation, the analyzer offers fast response, low maintenance, and long-term durability, making it an ideal choice for industries, wastewater treatment plants, and environmental monitoring applications.
